The climate challenges and the UN goals for 2030 play key roles when manufacturers around the world seek to implement increasingly important sustainable production solutions and methods. Especially the automotive industry faces challenges to reduce major environmental contributions from the production lines and improve sustainability. An important and often critical area is in the need for efficient HVAC solutions, where future requirements grow rapidly and makes the green technology race spiral with implementation of continuously greener solutions.
SPORTY DYNAMICS MEETS CUTTING-EDGE FAN AND AHU TECHNOLOGIES
Among the manufacturers that already now addresses the climate goals at the end of the decade is a world famous German manufacturer of sports cars. Apart from the production of cars with sporty dynamics and of which many have become iconic, this manufacturer has upgraded the air-conditioning systems in the paint-spray lines with the latest and very efficient AHU technology.
The top-modern and environmentally friendly paint-spray lines now benefit from the most economical and durable technology for AHUs on the market, which incorporates the extremely efficient NOVENCO® ZerAx® fans. Just as the aerodynamics of the sport cars ensure smooth and uncomplicated airflows, so do the ZerAx axial fans in the AHUs. The single airflow axial fans are completely unlike centrifugal fans, where the dynamic pressure is lost due to the design. The ZerAx does not throw anything away, as it keeps both the static and dynamic pressures, which result in huge and obvious energy advantages.
Sustainability is one the German sports cars manufacturer’s prime goals and with use of ZerAx fans they surpass the eco-design requirements set forth in the EU directive 2009/125/EC.
In addition, the AHUs with ZerAx fans, in comparison to AHUs with centrifugal fans, reduce investments, save materials, require less space and generally boost comfort levels with low noise and sound.
THE ZERAX® FAN – A GAME CHANGER WITH 92% FAN EFFICIENCY
The highly efficient ZerAx® axial fans are in fact best in class and are well above the environmental legislative requirements of today in terms of energy consumption, sustainability and reusability. As such they are well-suited for much stricter future requirements.
In this installation, the market-leading fan efficiency of 92% ensures that almost all the aerodynamic energy is preserved and results in the equally impressive system efficiency of 81%.
Quite ingeniously the NOVENCO engineers contribute to short AHU lengths with dual functionality as part of the fan design. The diffusers simply double as silencers and convert the airflow velocity into static pressure, while also reducing the sound levels.
Keppel Bay Tower is an exceptional commercial building, matched only by its unparalleled location. The 18-storey Keppel Bay Tower, owned and operated by Keppel Land, has been certified as a Green Mark Platinum (Zero Energy) building by the Building and Construction Authority (BCA), which makes it the first commercial building in Singapore to achieve this distinction.
TOP 5 TECHNOLOGIES
The transformation began in 2018, when the Building and Construction Authority (BCA), a part of the Ministry of National Development of the Singapore Government, awarded Keppel Land with a grant of over $1 million under the Green Buildings Innovation Cluster (GBIC) programme to implement new and emerging energy-efficient technologies at Keppel Bay Tower. The tower had already achieved the Singapore Green Mark Platinum status and the aim of the GBIC initiative was to reduce the energy consumption by a further 20%. Over 50 applicants applied to take part in the GBIC competition. Out of them, the BCA chose 5 technology partners for the trial at the tower. NOVENCO Building & Industry’s proposal to retrofit an existing centrifugal fan in an air handling unit with a high efficiency ZerAx® axial fan was chosen due to the significant energy reduction potential indicated by probing measurements and verification techniques. The ease of the retrofit work was a further contributing factor for choosing the up-to-date and the most efficient fan in the world, the NOVENCO® ZerAx® fan.
RETROFIT IN LESS THAN 10 HOURS
The energy-efficient technologies implemented at Keppel Bay Tower include the most modern technologies such as the innovative and highly efficient EC+ concept of NOVENCO® ZerAx® axial fans with high efficiency motors and Danfoss VFD®s. The retrofit work went smoothly and was completed in an impressive time of less than 10 hours. The energy savings of 43% achieved through use of the ZerAx EC+ fans have been verified by the independent adjudicators Nanyang Technological University (NTU). The impact the ZerAx EC+ fans have on the annual energy consumption of the building resulted in February 2020 in a 22.3% reduction, which exceeded the initial target of 20%. The Keppel Land company is now in the process of replacing the remaining 21 centrifugal fans with high efficiency NOVENCO ZerAx fans at the Keppel Bay Tower.
For more information about this succesful story, please refer to the article Keppel Bay Tower certified as Singapore's first Green Mark Platinum (Zero Energy) building
The Maastunnel is a monumental tunnel in the heart of Rotterdam. Construction started in 1937 and having opened in 1942. It is the oldest tunnel in the Netherlands and passes under the Nieuwe Maas river and is located west of the centre of Rotterdam as a part of the Rotterdam Tunnel Traverse. The closed section of the tunnel is 1,070 metres long and it has two tubes, each with two lanes. There is also a separate tube for cyclists and one for pedestrians.
RE-BUILD THE MONUMENT
The recent overhaul and upgrade of the tunnel involved both structural and technical aspects, amongst which a major alteration of the tunnel ventilation. The importance and complexity of the job to preserve the monument was further stressed by new regulations. This entailed implementation of a longitudinal ventilation system to create safe conditions for the evacuation of people in the event of a tunnel fire and to provide fire brigades with smoke-free attack routes.
RELIABILITY FOR LIFE SAFETY

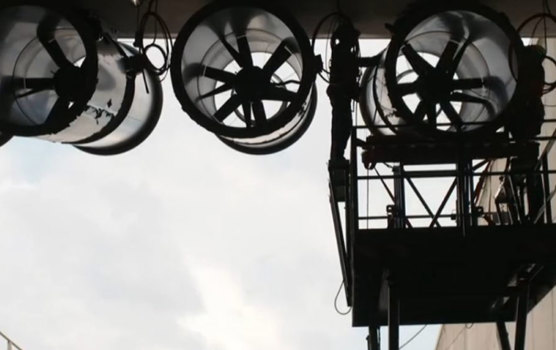

NOVENCO Building & Industry supplied and installed tunnel fans firstly as a temporary measure during the construction phase and subsequently also for permanent use. The installation consists of NOVENCO’s round tunnel fans type AUR 1250 and rectangular fans type ARC 710, which are specially designed, space-saving jet fans for tunnel profiles with minimal available installation height. In conditions where installation space for tunnel jet fans is limited, the NOVENCO rectangular fans play an essential role when designing ventilation and smoke control solutions. And last but not least, the rectangular range of tunnel jet fans provide a lower sound level, which ensures better conditions and driving comfort in the tunnels.
Both installed tunnel jet fan types are well known for an uncompromising quality and more importantly, reliable in case of fire.
The re-opening of the Maastunnel after two years of reconstruction and renovation aroused a lot of interest around. As it was stated in the Dutch newspaper AD: ‘The Maastunnel passed its final exams. In case of fire, there will occur a storm’ and in this case the storm is guaranteed by NOVENCO’s reliable jet fans.
The system supplied and installed by NOVENCO Building & Industry is a mechanical ventilation system which executed as a longitudinal ventilation and ventilates in traffic direction. The ventilation system is dimensioned for pollution ventilation, and guarantees effective ventilation and smoke control in case of a fire. The ventilation system consists of:
- 9 pcs round NOVENCO AUR 1250
- 5 pcs rectangular NOVENCO AUC 710 tunnel jet fans
The latest pride of Mercedes-Benz, a modern office building in Nieuwegein, the Netherlands, follows the new Daimler's office concept MeWe Space. Here creativity and functionality melt together to form a multi-purpose office space.
The renovated building meets the desire to work in a different way, where mobility and flexibility play an important role. The heart of the building is a two floor high atrium, which includes a full glass roof, vertical gardens on the walls, glass tower meeting rooms and plenty of space for creativity.
The new offices cover all entities and house staff from the passenger car, delivery van, truck, financial and services divisions under one roof.
To follow the high standards of the renovated building and to fulfill the regulations for fire ventilation systems in the Netherlands, Mercedes-Benz has chosen to install NOVENCO car park ventilation systems in these underground facilities.
NOVENCO Building & Industry was awarded the contract from HOMIJ Technical Installations, who is responsible for all technical installations, for re-design of the two-layer car park ventilation system, component delivery, installation and for certification according to BRL-K21025. The contract also stipulated an external inspection approval of the firefighting system by Kiwa, an autonomous global organization for testing, inspection and certification.
Car park ventilation systems are among NOVENCO's basic technologies and expertise. This field of solutions was in fact introduced by NOVENCO in the 1990s, when our jet fans revolutionized the market for car park ventilation systems. Today, the jet fans are recognized as invaluable assets for removal of exhaust gases from cars and for aiding firefighting services. The energy use of our car park solutions is at a minimum in all situations and provides comfort ventilation or efficient removal of toxic smoke from fires. The solutions are truly 2-in-1, as they help protect lives and assets as well as the environment.
HIGHEST SAFETY INSTALLATION

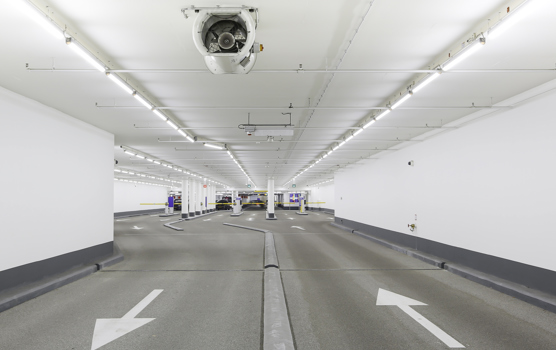

The system from NOVENCO Building & Industry consists of 18 pcs jet fans type AUO 290, one large axial flow fan type ACN 1000 for air supply and two large extract shafts fitted with two smoke axial flow fans type ACN 1000, which ensure safe and efficient extraction of the polluted air mixture from the car park facility.
The system from NOVENCO Building & Industry is certified in accordance to the Dutch BRL-K21025 for certification of Smoke Control Systems in accordance with the regulations from 2014. The aim of the certification scheme is to establish and set the quality level for smoke control systems in the Netherlands.
The BRL-K21025 sets the approval criteria for smoke control systems and how enforcement and control take place. The smoke control systems include smoke and heat exhaust systems and pressurization systems, especially in stairwells.
All in all the system from NOVENCO Building & Industry ensures the highest level of smoke and toxic gas ventilation.
- HIGHEST LEVEL OF FIRE SAFETY
- 18 JET FANS IN TWO-LAYER CAR PARK
- DUTCH BRL-K21025 CERTIFICATION
The Volkswagen Group is Europe’s largest automobile manufacturer with production sites in seven European countries. With the group-wide future program “Strategy 2025”, Volkswagen wants to get fit for the future with the vision of becoming a world-leading provider of sustainable mobility. Sustainable means also responsible care for the environment.
Sustainable growth is the basis of medium-term future planning and the associated increase in value and image of any company. In that context, the new generation of air handling units with axial fans can contribute greatly in all areas of ventilation and air conditioning.
Since the beginning of 2017, Volkswagen has been intensively investigating the technical possibilities of high-efficiency axial fans and has carried out a whole series of tests, measurements and practical trials. At the beginning of 2018, it was time for the next step: implementation of the obtained results and knowledge in new air conditioning technology. Two production sites in two countries had air handling units with new technology and highly efficient axial fans installed – at Porsche in Stuttgart/Zuffenhausen, Germany and at Volkswagen Navarra in Pamplona, Spain.
- AHU MANUFACTURER: TRUBEL KLIMATECHNIK
- INSTALLATION LOCATION: PAMPLONA, SPAIN
- NUMBERS: 3 AHUs WITH 80,000 m³/h EACH and 3 AHUs WITH 60,000 m³/h EACH
- TOTAL CAPACITY: 420,000 m³/h
VOLKSWAGEN NAVARRA, PIONEER AND ROLE MODEL FOR THE USE OF SUSTAINABLE VENTILATION TECHNOLOGY
Volkswagen Navarra assumes daily responsibility for the environment, safety and society. Thereby resource management and emissions receive special attention. Through innovation and impressive planning at the site, the goal is to continuously reduce energy consumption and the associated CO2 emissions. For this strategic interest, the new device technology with the new ZerAx® axial fans was deliberately chosen as a solution for the renewal of the ventilation in the assembly hall.
"The demands placed on the air conditioning of buildings increase steadily. Axial fans can make a significant contribution to combining technical requirements with sustainable building design. The new trend-setting AHU technology has fully met all expectations."
Asier Matorell, Factory Planning Manager, Volkswagen Navarra and Axel Rossmannek, Head of Supply Planning Volkswagen Wolfsburg
THE VOLKSWAGEN PROJECT
The ventilation had to be completely renewed for one of the largest production buildings of the factory. Higher air volumes were needed and the space available for the installation of the equipment was insufficient. Therefore, a new installation location for the AHUs had to be found on the roof. The large 80,000 m³/h units were placed on a steel platform on the connection between two buildings. In addition to saving energy, the criteria unit size, weight saving and noise reduction were therefore also key requirements.
A NEW AIR CONDITIONING GENERATION
The high demands could only be met with the new generation of air handling units, in which the highly efficient axial fans from NOVENCO were optimally utilized. The last equipment was put into operation in mid-December and exceeded all expectations.
The ZerAx® axial fans currently represent the world’s leading fan technology with fan efficiencies of up to 92%. NOVENCO, however, went one step further by optimizing the ZerAx® even more for use in the air handling units.
NEW GENERATION OF AIR CONDITIONING
- ALL DEVICES WITH TWO PARALLEL SUPPLY AND EXHAUST FANS
- NEWLY DEVELOPED DIFFUSERS 1.5 x D, OPTIMIZED FOR FREE OUTLET
- NEW EC MOTORS UP TO 31 KW AND DANFOSS EC+ CONCEPT
- NEW AHU TECHNOLOGY LEADS TO 20% ENERGY SAVINGS, IS 30% SHORTER AND 30% LIGHTER
INTERACTION OF DIFFERENT COMPONENTS
The key phrase here is intelligent interaction of the system components. At NOVENCO this interaction is embodied in the term EC+ and is developed in cooperation with Danfoss, Denmark. Only the optimal interaction of the system components fan - motor - electronics – diffusor, makes the full potential of a highly efficient fan realizable.
SYSTEM EFFICIENCY INCREASE:
- AXIAL FANS WITH UP TO 92% EFFICIENCY
- NEWLY DEVELOPED EC MOTORS WITH UP TO 31 KW POWER AND EFFICIENCIES OF UP TO 96%
- OPTIMIZED FREQUENCY INVERTERS FOR EC MOTORS WITH UP TO 98% EFFICIENCY
- NEWLY DEVELOPED DIFFUSERS, OPTIMIZED FOR FREE OUTLET
RENEWABLE ENERGY FIRST
The Greater Copenhagen Utility company HOFOR (Danish: Hovedstadsområdets Forsyningsselskab) in the Copenhagen area has more than one million customers. The company supplies 1.1 million inhabitants with drinking water, district heat, district cooling and town gas, as well as disposal of waste water. HOFOR’s vision is to create sustainable towns and cities, based on climate-friendly and environmentally safe supply solutions. The main focus is on sustainable deliveries and renewable energy in the operations. HOFOR is actively involved in the development of sustainability criteria and standards under the biomass sustainability certification scheme Sustainable Biomass Program (SBP). See https://sbp-cert.org/
HOFOR has signed a voluntary agreement between Danish energy companies, the target of which is to secure sustainable biomass use.
POWER PLANT OF THE FUTURE
For the newest of HOFOR’s investments, the heat and power plant Amagerværket in Copenhagen, in close cooperation with Suomen Ilmastointitukku Oy company (Finland), NOVENCO Building & Industry was chosen as supplier of a complete ventilation system for the biomass-fired boiler plant. The investment supports the climate plan for Copenhagen, according to which the city aims to become the first CO2-neutral capital in the world by the year 2025. Installation of the Amagerværket power plant is on it’s way, and the heat and
power production commences in 2019. The new heat and power plant will supply electricity and heat for the entire city of Copenhagen. The new 500 MW biomass fired boiler plant replaces an old 600 MW coal-fired plant, and thus reduces the CO2 emissions from the plant by a total of 1,2 million tons annually. The new boiler plant has a net electricity production capacity of approximately 150 MW and can produce up to 585 MJ/s district heat. Read more about this spectacular investment on www.hofor.dk
NOVENCO Building & Industry is the supplier of a complete environmentally friendly ventilation system for the biomass-fired boiler plant area of the new power plant Amagerværket in Copenhagen. Equipment delivery consists of roof fans, recirculation fans, and supply- and exhaust smoke fans, based on the high quality NOVENCO NovAxTM axial flow fans. The renowned NovAxTM fan design and performance from the 1980s is efficiency-wise unmatched by most competitors here 30 years after the introduction. The durability of the NOVENCO system will assure reliable ventilation of the biomass-fired boiler plant at Amagerværket, and contribute to a greener and sustainable Copenhagen.
- DURABLE AND RELIABLE VENTILATION SYSTEM
PROVEN AND EFFICIENT NOVAX™ AXIAL FANS
Meet a true height-savers, NOVENCO rectangular tunnel jet fans
JK Tyres pioneers in India with ZerAx® and EC+ Concept

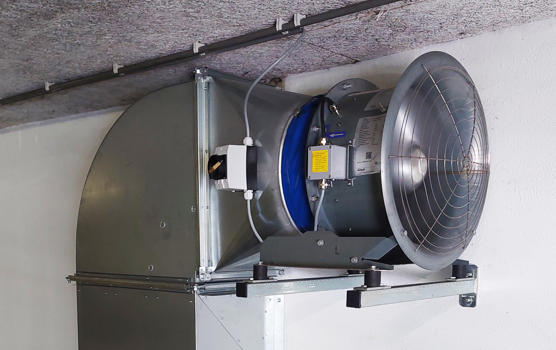

Fully automated car park equipped with safe NOVENCO jet fans
New partnership to optimise AHU systems
Protect the blue planet for a greener world with NOVENCO Building & Industry
Ingenious BMW Welt equipped with NOVENCO renowned jet fans
Comfortable ventilation in the middle of desert
NOVENCO's reliable ventilation systems
Innovative AHU concepts with ZerAx® fans

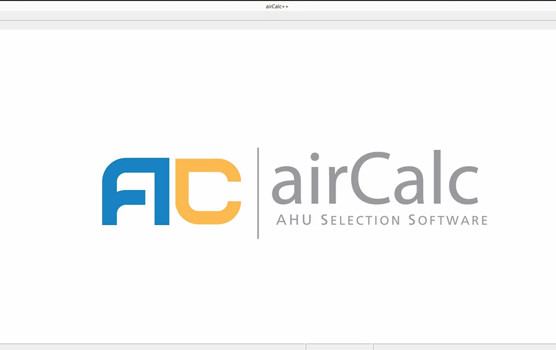

airCalc++ Software now greener with ZerAx® fans
Highest fire safety
A state-of-the-art hospital
Five storeys of safe underground parking
Water powered by ZerAx®
Car parks for future home of the Royal Bank of Canada
World-class science centre simulates gale-force winds with ZerAx® fans

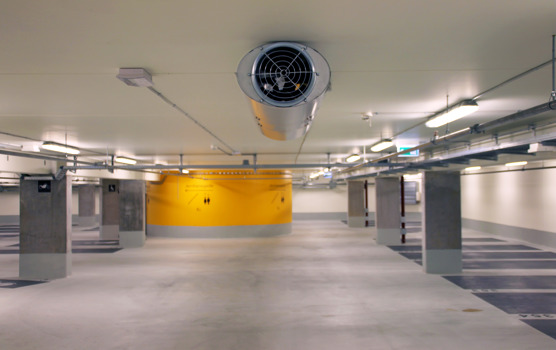

Safe Car Parks in the heart of Jersey
The highest safety at the former Southampton Hotel
5 levels of fresh air under the ground
Breathtaking riverside living
The green carpet over Maastricht
ZerAx® fan sets new standard at TÜV SÜD test laboratory
Energy saving and reliable operation at Danish TV Station

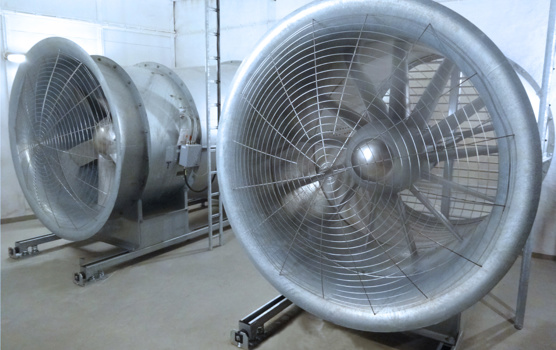

ZerAx® guarantees energy saving at minus 30°C
Safe underwater parking with NOVENCO jet fans to keep air cool and clean
ZerAx® fans ensure safety and health in new mall in Riyadh, Saudi Arabia
SAFETY IN BURJ KHALIFA’S CAR PARKS
World’s tallest building, incomparable achievement of engineers, unique work of art - Burj Khalifa is all the above, literally and figuratively. More than just the world’s tallest building, Burj Khalifa is a splendid symbol of development of the dynamic and successful Middle East. Finally, Burj Khalifa is an impressive example of Dubai’s growing role in a changing world. In less than 30 years Dubai has developed from a regional centre to a global one. Dubai does not owe its success to oil reserves, but to resources of human talent, their ingenuity and creativity.
555 metres above ground, the highest outdoor observatory in the world is located, which is undeniably Dubai’s most iconic destination. The Corporate Suites located on the top levels of the tower with 37 floors are offices with the most inspiring view.
Armani Hotel Dubai, occupied by many of the tower floors, is the world’s first hotel designed by Giorgio Armani. Reflecting the pure elegance, simplicity and sophisticated comfort that define Armani’s signature style. In addition, on floors 9 to 16, Luxury Residential Suites designed also by Giorgio Armani are located. Moreover, with 900 private apartments, luxurious pools, restaurants and fitness facilities Burj Khalifa is the world’s most-prestigious address and home to a select few.
With almost 830 metres and more than 160 stories, Burj Khalifa holds the following world records:
- Tallest building
- Tallest free-standing structure
- Highest number of storeys
- Highest occupied floor
- Highest outdoor observation deck
- Elevator with the longest distance
- Tallest service elevator
RELIABLE CAR PARK VENTILATION
The car park in Burj Khalifa has approx. 3,000 parking spaces in four levels and a total area of just below 89,000 m2. The car park ventilation system delivered by NOVENCO Building & Industry complies with the US standards Ashrae and AMCA for air quality and fan requirements. What is important to underline, in case of fire the system is capable of operating at 300°C for min. 60 minutes. A CFD-simulation was carried out for the project in order to show that the ventilation system is capable of limiting the concentration of carbon monoxide to a level below the specified 35 parts per million. The CFD simulation did also show air velocities and the smoke density and smoke temperature in case of a fire in the car park.
All in all 50 NovaxTM axial flow fans and 196 jet fans have been delivered for this spectacular project.
Carlsberg replaces old fans with new high efficiency ZerAx® fans
Cooling the world's most advanced cruise ship AIDAprima

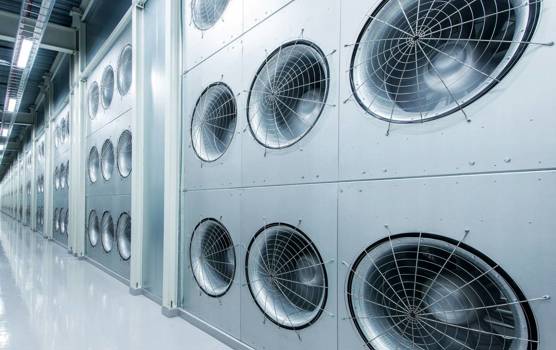

ZerAx® fans make data center cool
