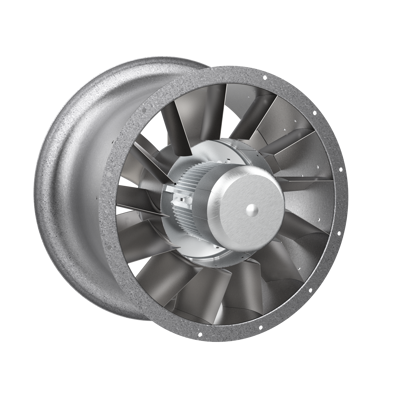

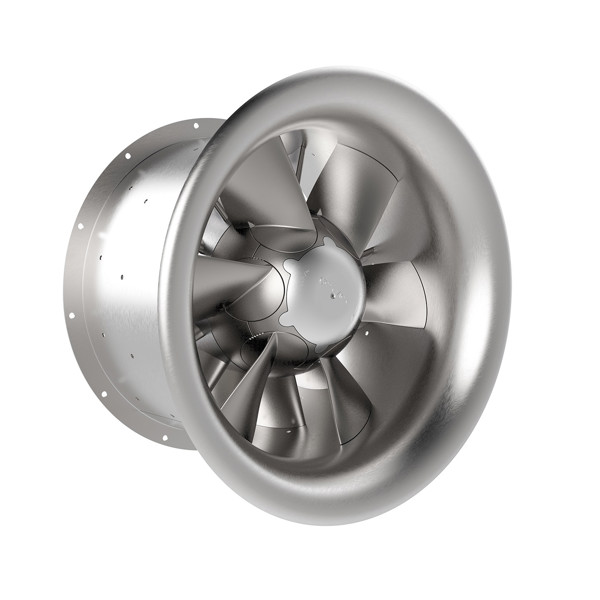

Axial Flow Fans ZerAx AZL

The ZerAx AZL are unidirectional axial flow fans for installation in air handling units (AHUs). The primary application is for new installations. Depending on the kind, layout and construction, the fans can be used for retrofitting existing installations.

Product facts

• For installation in AHUs and retrofitting
• 13 sizes with impeller diameters from Ø250 to Ø1000 mm
• Two hub sizes – Ø160 or Ø350 mm
• Fan casing thicknesses of 2 or 3 mm
• Airflow rates
  • 0.1 to 33 m³/s
  • 350 to 119.000 m³/h
• Pressures up to 3300 Pa
• Efficiencies up to 92%
• Blade angles
  • Adjustable for Ø160 hubs
  • Fixed for Ø350 hubs
• Reversible for shorter periods

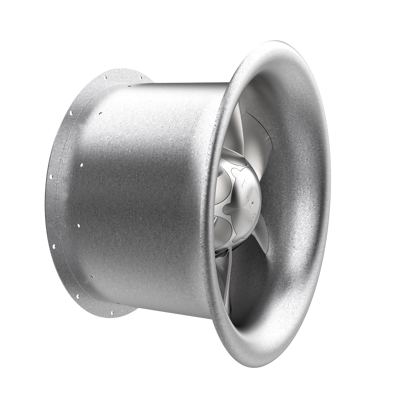

• Integrated inlet cone
• Fan casing of AluZink (light motors) or galvanised steel (heavy motors)
• Impeller, guide vanes and motor mount of aluminium
• Accessories for mounting, connection, sound attenuation, safety and regulation
• Product configuration with AirBox™

Work areas

The curves cover fans with frequency drives and variable blade angles.

» Fan sizes Ø250 - Ø500 / Ø160 hubs

---

---

» Fan sizes Ø500 - Ø1000 / Ø350 hubs

---

---
