CGF
The NOVENCO CGF unidirectional centrifugal jet fan is a compact, robust, and reliable solution perfectly suited for car parks, featuring an ultra-low installation height for use in spaces with low ceilings.
Its super low-profile design and special outlet guarantee efficient airflow control and high thrust transfer.
Constructed from corrosion-protected galvanised steel, the CGF is certified for dual operation, providing highly efficient, low-noise daily ventilation and dependable smoke control, maintaining performance at 300°C for two hours during a fire.
NOVENCO fans surpass the EU Ecodesign (ErP) requirements and deliver higher efficiency with consistent performance. This results in lower power use, reduced operating costs, and a more sustainable choice for modern ventilation systems.
NOVENCO CGF smoke fans are tested and certified for operation with variable speed drives for temperatures at up to 300°C during 2 hours according to EN 12101-3 for powered smoke and heat control fans.
With an installation height of just 268 mm, the CGF jet fans are ideal for car parks with limited ceiling space.
The flat Aluzink casing, inlet cone, and internal deflector secure optimal airflow with minimal inlet losses.
All fans are balanced to VDI 2060 / ISO 1940 Class Q 6.3 and comply with international machinery safety standards.

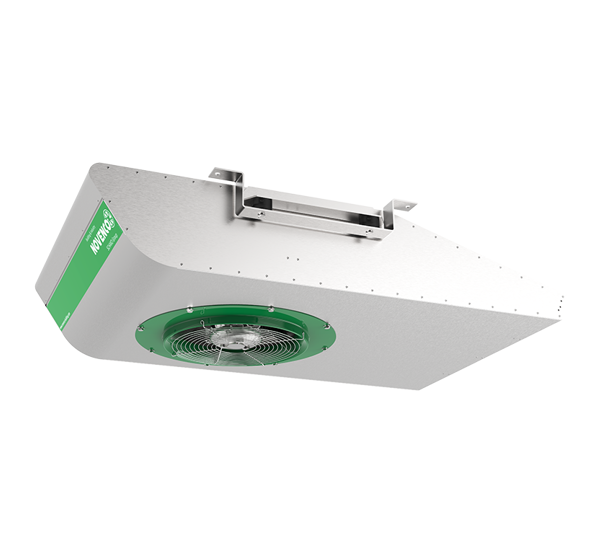

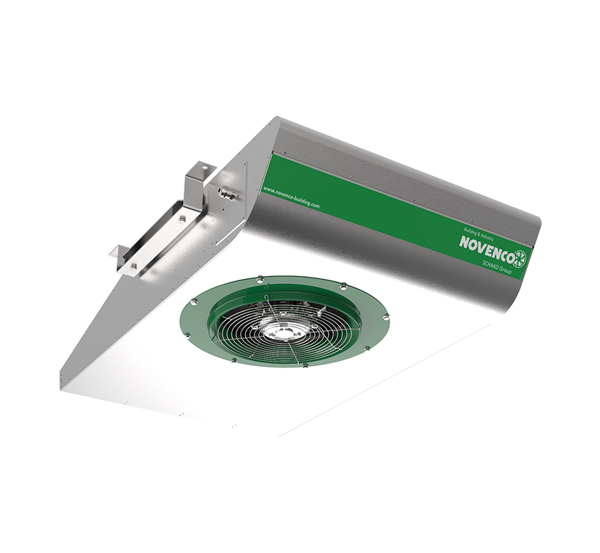

The CGF jet fan is a flat centrifugal unit designed for efficient, long-term performance in car parks with minimal installation height. It features an inlet cone with a wire guard on the bottom to minimise air losses and an internal outlet deflector to precisely guide the airflow.
The fan is equipped with a two-speed motor for direct start and has the terminal box integrated into the housing. Standard mounting feet and vibration mounts are included for direct ceiling installation. Its robust, corrosion-protected construction is certified for dependable hot smoke extraction, operating at 300°C for two hours during a fire.
Thrust levels from 12 to 50 N and sound pressures from 61 to 75 dB(A) at 3m/45°.
A single jet fan size (500) with two-speed motors as standard.
Centrifugal impeller diameter of 500 mm with measured thrust up to 50 Newtons (N).
