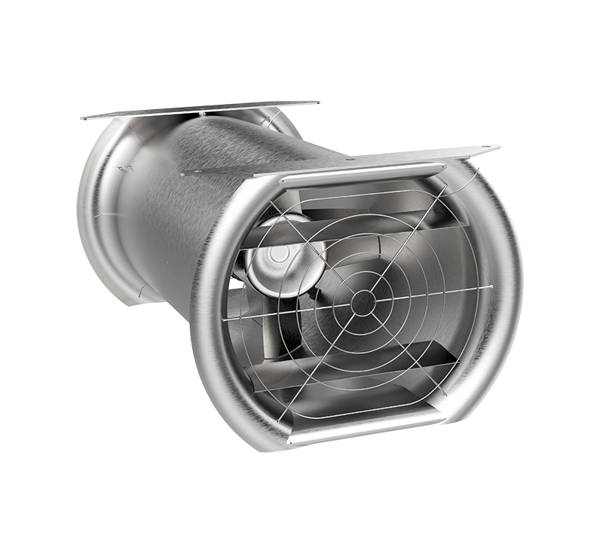

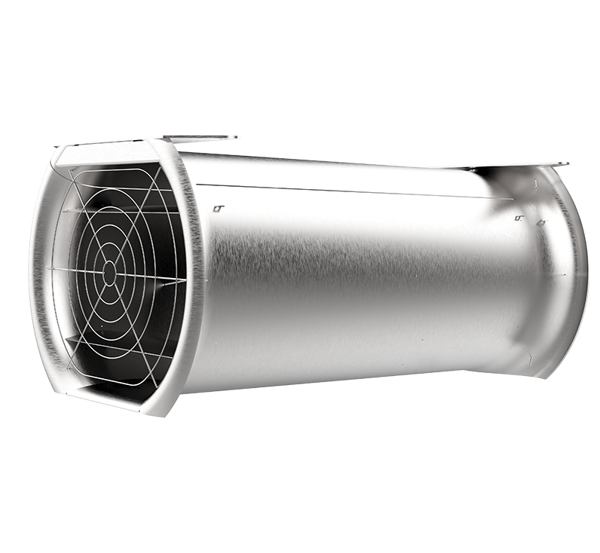

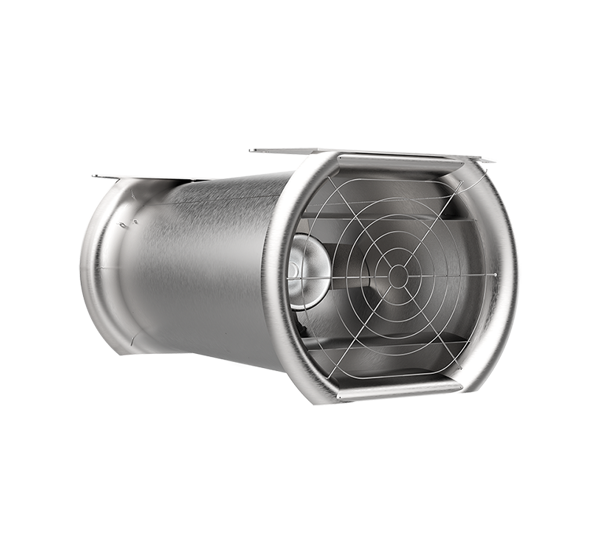

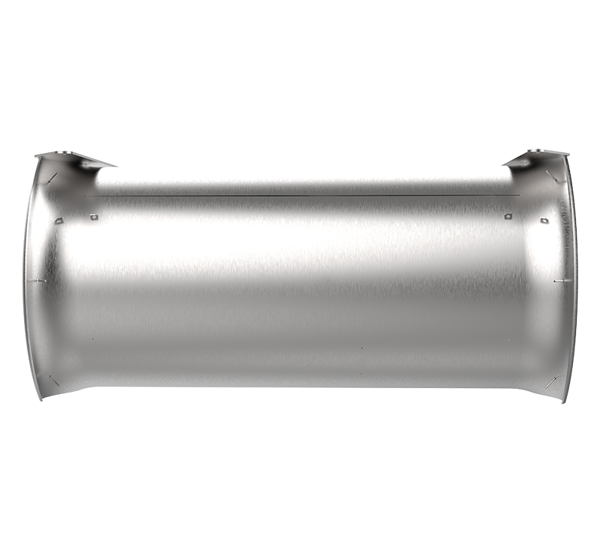

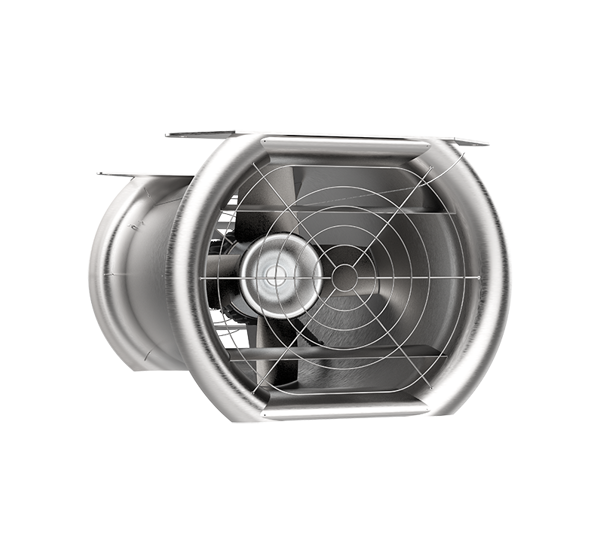

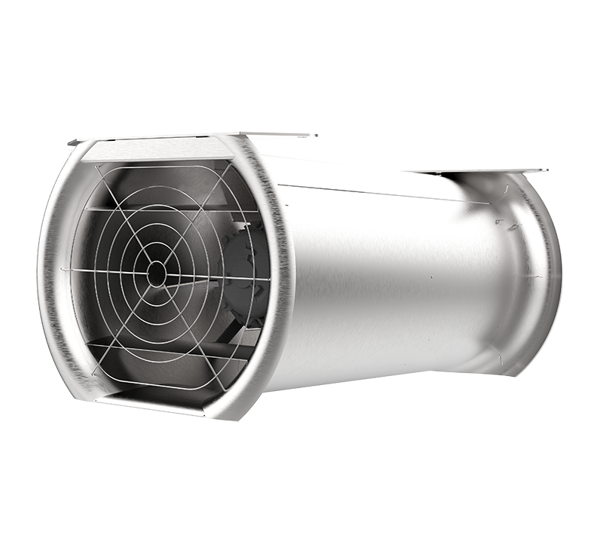

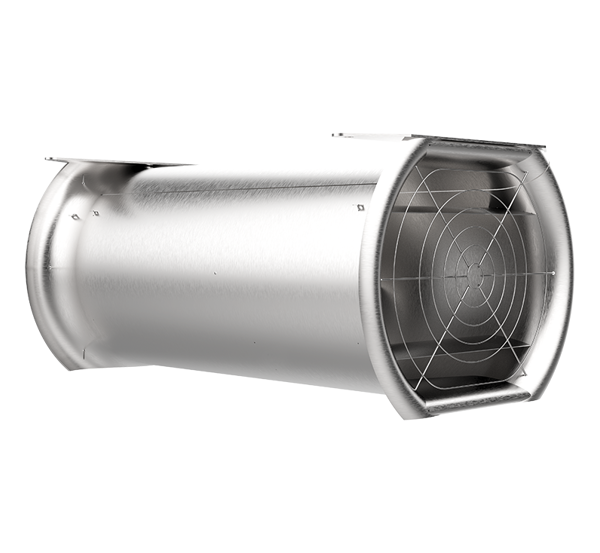

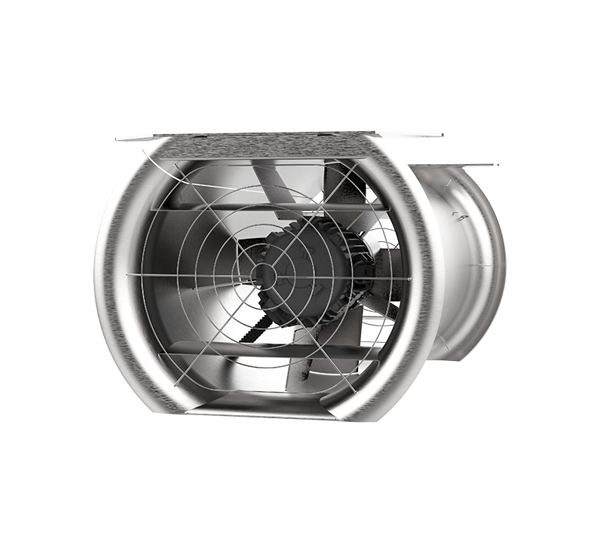

AUT-ART
The NOVENCO AUT/ART jet fans are compact, robust, and specifically designed for car park ventilation systems, offering dependable, efficient performance and a long service life. These units feature a super compact design and a low installation height, making them ideal for low-ceiling environments.
They achieve low sound levels through a patented sound silencing technique despite not having traditional silencers.
Both the fully reversible ART and the efficient unidirectional AUT models are built on the robust NovAx platform.
They are certified as dual operation fans, providing efficient daily ventilation while also ensuring certified, high-temperature smoke control during a fire.
NOVENCO fans surpass the EU Ecodesign (ErP) requirements and deliver higher efficiency with consistent performance. This results in lower power use, reduced operating costs, and a more sustainable choice for modern ventilation systems.
NOVENCO smoke fans are tested and certified for operation with variable speed drives for temperatures at up to 400°C during 2 hours according to EN 12101-3 for powered smoke and heat control fans.
Aerodynamic guide vanes, inlet cones, and internal deflectors ensure efficient thrust and minimal pressure loss. The reversible ART version includes dual deflectors for full bidirectional operation.
The impeller features a NovAx hub with cast aluminium blades set at a fixed pitch angle. Direct motor coupling ensures precise and stable operation. All NovAx fans are balanced to VDI 2060 and ISO 1940 Class Q 6.3.
Standard execution is fully galvanised and suitable for unheated, low-corrosive areas (DS/EN ISO 12944-2, C3). Optional powder coating is available in any colour.
The sturdy fan casing is round and fitted with integrated inlet cones on both sides to reduce inlet losses. Internal wire guards are mounted on both ends.
AUT jet fans use a single deflector to guide airflow in one direction, while ART jet fans include deflectors on both ends for reversible flow. A patented sound attenuation technique is used to minimize sound levels without using silencers.
Rigorously tested and certified for hot smoke extraction up to 400°C for two hours for dependable smoke control during a fire. Their robust construction uses high-quality materials for reliable corrosion protection, guaranteeing long-term durability and performance.
Thrust levels from 14 to 53 N and sound pressures from 54 to 75 dB(A) at 3m/45°.
A single jet fan size (400) with two-speed motors as standard.
Impeller diameter of 400 mm with measured thrust up to 50 Newtons (N).
