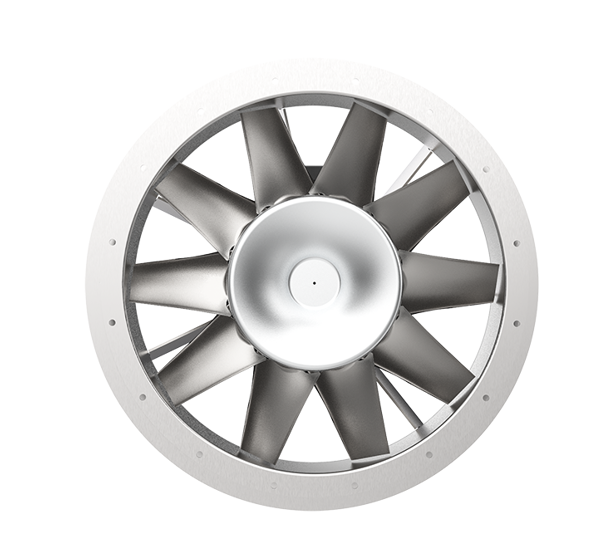

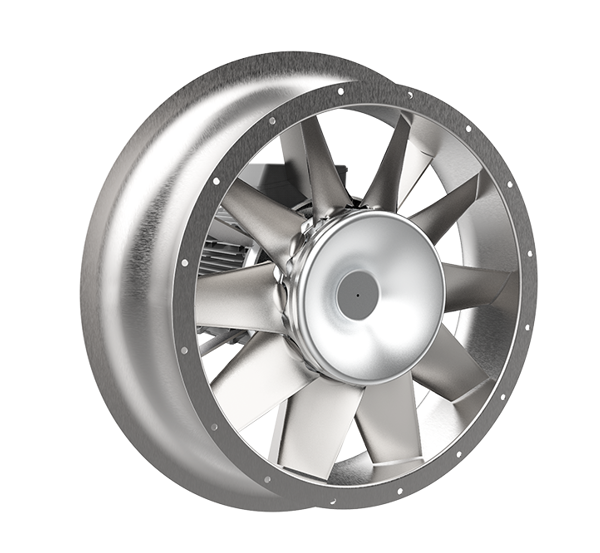

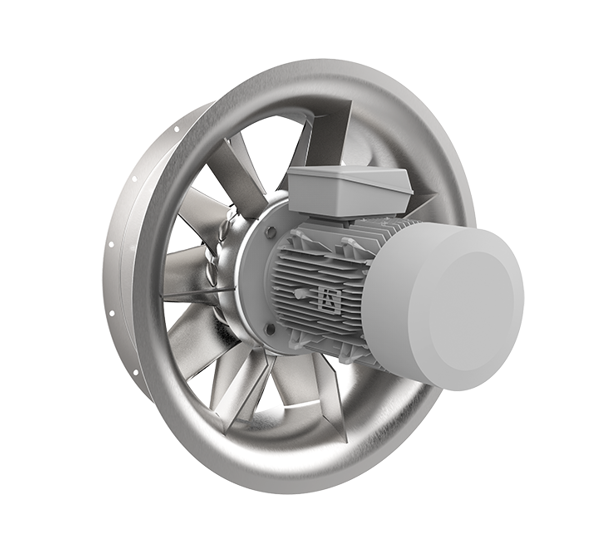

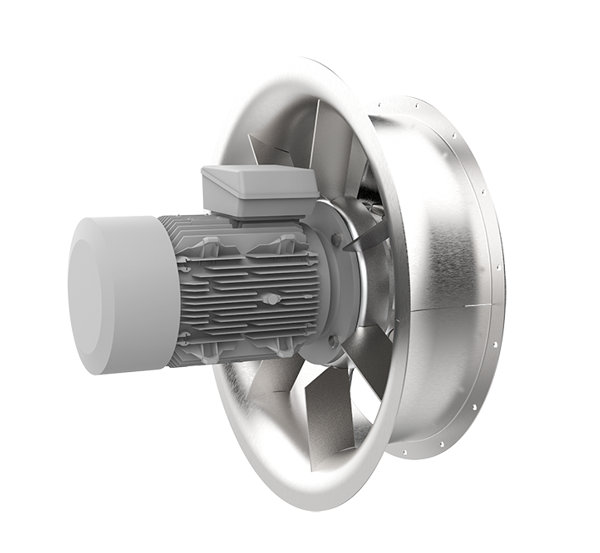

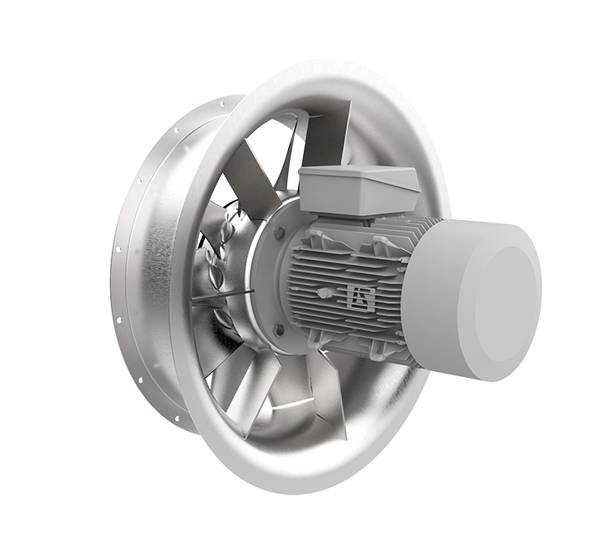

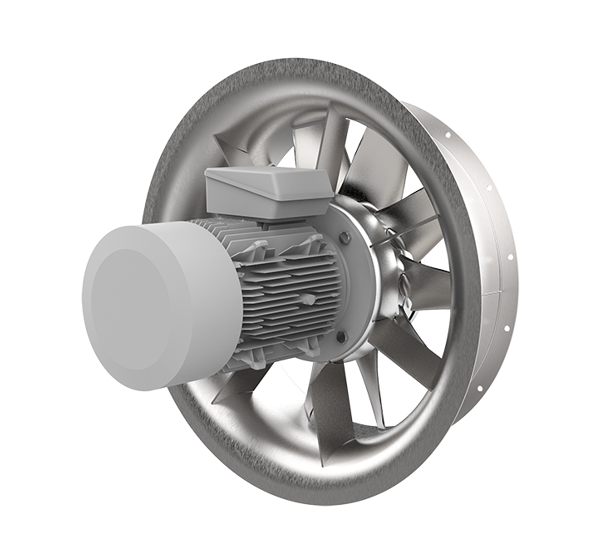

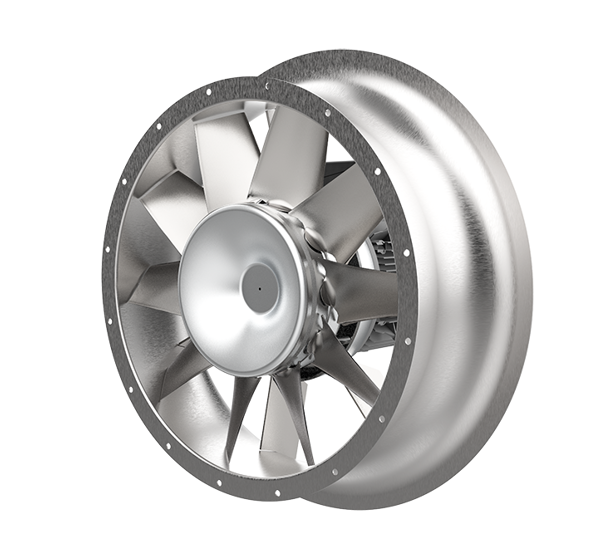

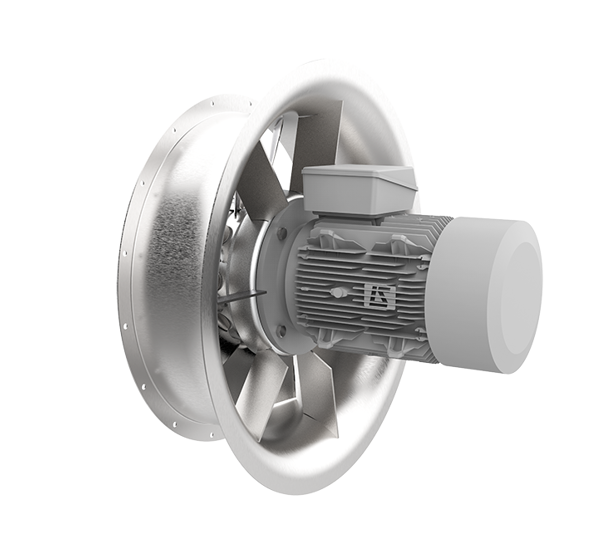

NovAx ACP-ACG
The NOVENCO NovAx ACP and ACG are unidirectional axial flow fans designed for conventional, industrial and marine use.
Both models are also available as smoke fans for operation during fires in car parks, commercial and industrial buildings, tunnels and similar environments.
The smoke fan versions are tested and approved for smoke exhaust requirements.
The ACG smoke fans include an additional guide vane arrangement for improved efficiency.
NOVENCO fans surpass the EU Ecodesign (ErP) requirements and deliver higher efficiency with consistent performance. This results in lower power use, reduced operating costs, and a more sustainable choice for modern ventilation systems.
NOVENCO smoke fans are tested and certified for operation at up to 400°C during 2 hours according to EN 12101-3 for smoke exhaust fans.
ACP for wall or bulkhead mounting, ACG for duct connection.
Airflow up to 65 m³/s and pressures up to 2000 Pa with efficiencies up to 83%.
Tested and approved designs for demanding fire safety applications.
Optionally the NovAx ACP and ACG fans are available as smoke fans. The NovAx ACP and ACG fans are for conventional, industrial and marine environments and suitable for operation during fires in car parks, commercial and industrial buildings, tunnels and more.
The design is tested and approved to meet requirements for smoke exhaust. ACG fans are fitted with an additional guide vane arrangement to increase fan efficiency.
• NovAx® product family
• Axial flow fan with adjustable blade angle
• Integrated inlet cone with motor on suction side
• Eurovent 1/2 flanges on discharge side of the fan casing
• Outlet guidevanes on ACG for higher pressure and increased efficiency
• Standard C3 (EN-ISO 12944-2:2017)
• Optional: C4 or C5
