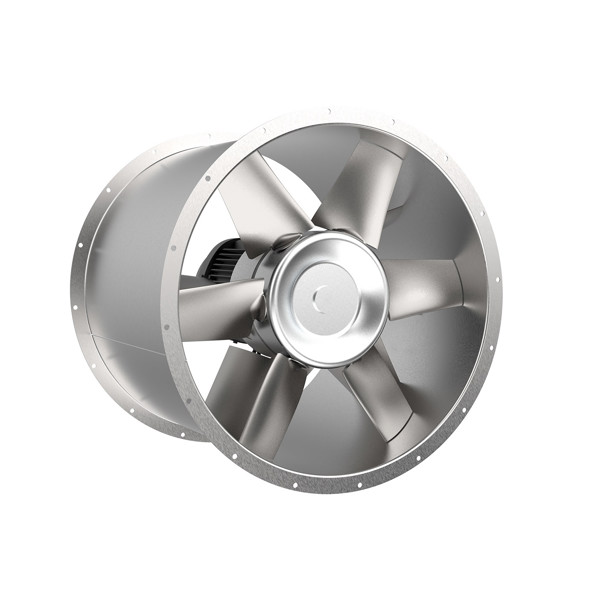

Axial Flow Fans NovAx ACN-ACW

The NovAx ACN are unidirectional axial flow fans for conventional and industrial use.

Optionally the NovAx ACN fans are available as smoke fans. The NovAx ACN smoke exhaust fans are for conventional operation and operation during fires in carparks, commercial and industrial buildings, tunnels and more. The design is tested and approved to meet requirements for smoke exhaust.


The NovAx ACW are extra durable unidirectional axial flow fans for marine use. The main characteristic is the very strong fan casing, which is an expressed requirement from the marine industry and which makes the ACW suited for rough conditions.


Product facts



  • For duct installation
  • Sizes
    ACN and ACW: 14 sizes with impeller diameters from Ø250 to Ø1600 mm
    ACN smoke fans: 12 sizes with impeller diameters from Ø400 to Ø1600 mm
  • Hub sizes:
    ACN and ACW: Seven hub sizes from Ø160 to Ø578 mm
    ACN smoke fans: Six hub sizes from Ø230 to Ø578 mm
  • Fan casing thicknesses
    ACN and ACN smoke fans: 2 or 4 mm
    ACW: 6 or 10 mm
  • Airflow rates
    • 0.1 to 65 m3/s
    • 350 to 235.000 m3/h
  • Pressures up to 2000 Pa
  • Efficiencies up to 83%
  • Adjustable blade angles
  • F200, F300 and F400 certified according EN 12101 part 3
  • Air over motor (cooling)
  • Fan casing and hub of galvanised steel
  • Impeller blades of aluminium or GRP*
  • Corrosion categories according EN-ISO 12944-2:2017
    Standard: C3
    Optional: C4 or C5
  • Accessories for mounting, connection, sound attenuation, safety and regulation
  • Product configuration with AirBox™
  • Also available as type NovAx ACP and ACG for free inlet or the 100% reversible NovAx ARN
  • Part of fan range available as Standard Range fans


*Impeller blades of glass-fibre reinforced polyester (GRP) are not available for hub sizes Ø403 and Ø578 mm
