AUZ-ARP

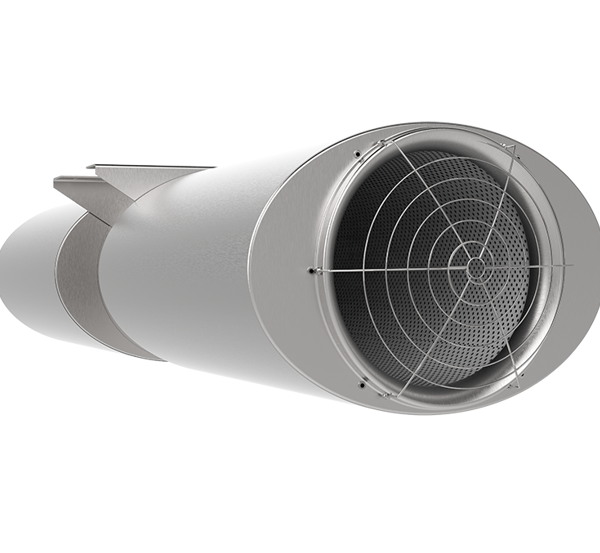

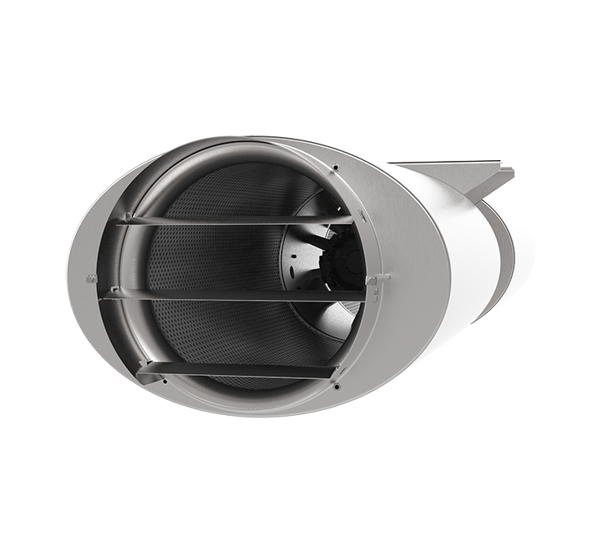

The ARP-AUZ series provides oval-design car park jet fans designed for low sound levels and efficient performance, featuring a compact 422 mm installation height suitable for constrained spaces.
The series includes the fully reversible ARP model, built on the robust NovAx platform, and the unidirectional AUZ model, utilizing the highly efficient ZerAx platform.

Both versions incorporate oval silencers for a sleek look and superior sound attenuation, ensuring high thrust for daily ventilation and dependable operation meeting all strict requirements for certified smoke exhaust safety.

Product highlights
@contentitem.EvtBillede.Name
Above ErP compliance
NOVENCO fans surpass the EU Ecodesign (ErP) requirements and deliver higher efficiency with consistent performance. This results in lower power use, reduced operating costs, and a more sustainable choice for modern ventilation systems.
@contentitem.EvtBillede.Name
EN 12101-3:2015 certified
NOVENCO smoke fans are tested and certified for operation with variable speed drives for temperatures at up to 400°C during 2 hours according to EN 12101-3 for powered smoke and heat control fans.
Low-noise operation
Oval silencers on both sides of the fan casing reduce sound emissions and support quiet car park ventilation.
Durable and efficient design
The robust fan housing, cast aluminium impeller blades, and optimized guide vanes ensure aerodynamic efficiency and long service life.
Flexible installation
Standard mounting feet allow direct ceiling or wall installation. Unidirectional and reversible configurations offer airflow flexibility.
AUZ magnelis_1.png
AUZ magnelis_2.png
AUZ magnelis_3.png
AUZ magnelis_4.png
Next image
Previous image
AUZ magnelis_1.png
AUZ magnelis_2.png
AUZ magnelis_3.png
AUZ magnelis_4.png
Product highlights
@contentitem.EvtBillede.Name
Above ErP compliance
NOVENCO fans surpass the EU Ecodesign (ErP) requirements and deliver higher efficiency with consistent performance. This results in lower power use, reduced operating costs, and a more sustainable choice for modern ventilation systems.
@contentitem.EvtBillede.Name
EN 12101-3:2015 certified
NOVENCO smoke fans are tested and certified for operation with variable speed drives for temperatures at up to 400°C during 2 hours according to EN 12101-3 for powered smoke and heat control fans.
Low-noise operation
Oval silencers on both sides of the fan casing reduce sound emissions and support quiet car park ventilation.
Durable and efficient design
The robust fan housing, cast aluminium impeller blades, and optimized guide vanes ensure aerodynamic efficiency and long service life.
Flexible installation
Standard mounting feet allow direct ceiling or wall installation. Unidirectional and reversible configurations offer airflow flexibility.
Related products
AUO magnelis_1.png
ARO-AUO
AZT magnelis_1.png
AZT
AUT-ART
Navigate to
Product information
Product data
Downloads
Fan sizes
Contact form
Related industries
Navigate to
Product information
Product data
Downloads
Fan sizes
Contact form
Related industries

The ARP-AUZ jet fan series offers compact, highly reliable car park ventilation solutions, distinguished by a sleek oval design, low installation height and low sound levels. These car park jet fans deliver high thrust efficiency, powered by either the robust NovAx platform (reversible ARP) or the highly efficient ZerAx platform (unidirectional AUZ), with aerodynamic guide vanes maximizing performance.

Rigorously tested and certified for hot smoke extraction up to 400°C for two hours for dependable smoke control during a fire.

Their robust construction uses high-quality materials for reliable corrosion protection, guaranteeing long-term durability and performance.

Certifications
  • Certified for hot smoke removal according to EN 12101-3 in classes F200, F300, and F400.
  • All smoke fans have been tested at high temperature for at least 2 hours.
Performance

Thrust levels from 15 to 50 N and sound pressures from 42 to 64 dB(A) at 3m/45°.

Sizes

A single jet fan size (340) with two-speed motors as standard.

Fan casing materials & corrosion categories
  • Galvanised steel casings, silencers and hub with aluminium impeller blades.
  • Corrosion category C3 (EN-ISO 12944-2:2017).
Accessories & variations
  • Reversible (ARP) and unidirectional (AUZ) versions.
  • Deflectors on the outlets (on both sides for reversible ARP).
  • Inlet wire guard for the unidirectional AUZ.

Impeller diameter of 340 mm with measured thrust up to 50 Newtons (N).
