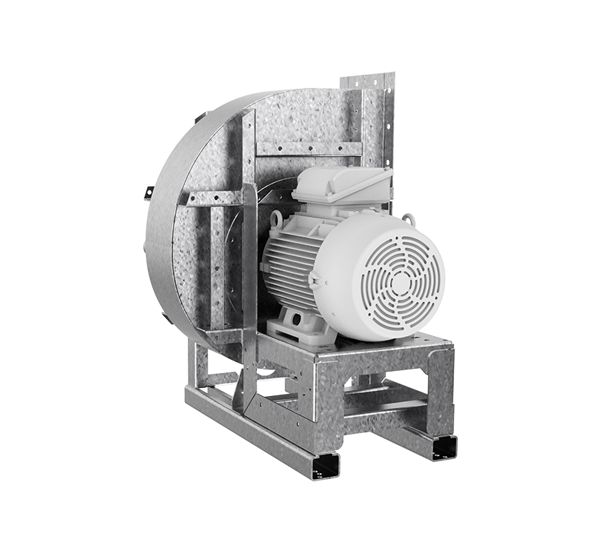

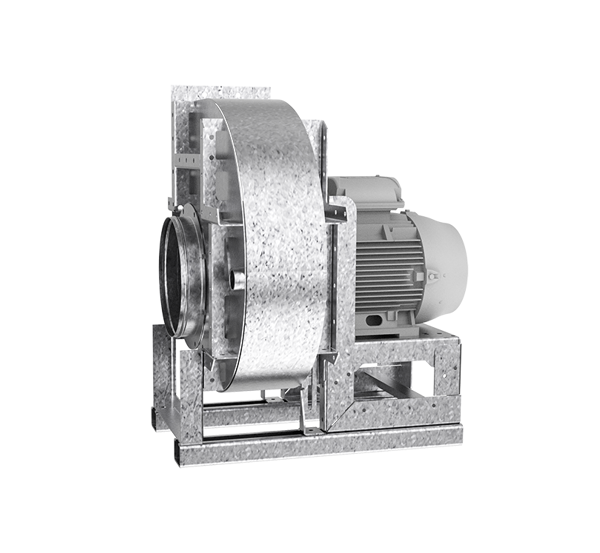

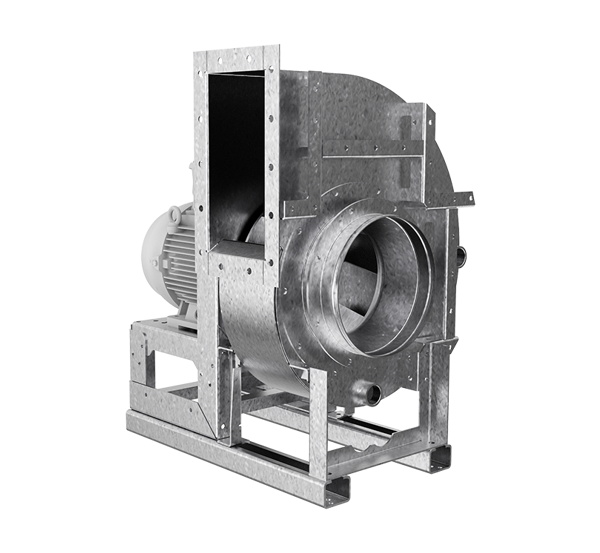

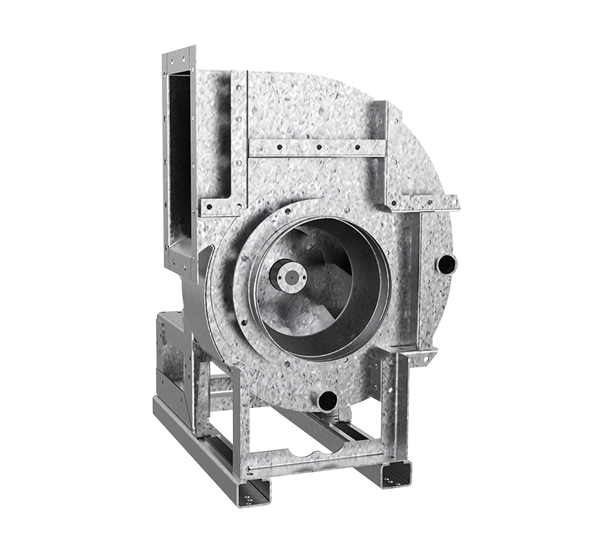

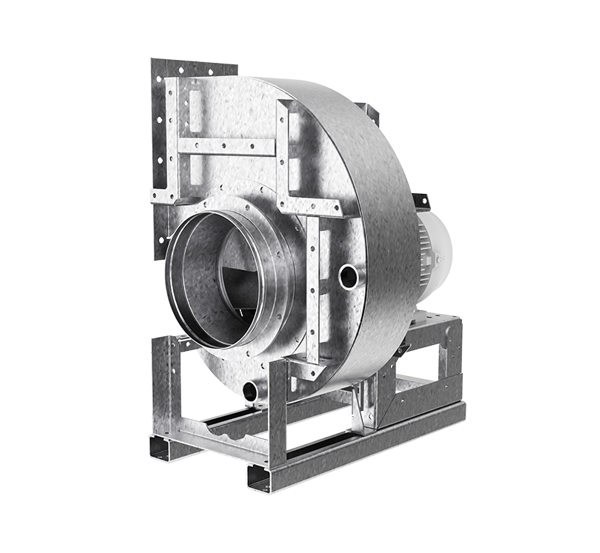

CAL
The CAL is a robust centrifugal flow fan designed for reliable operation in aggressive environments. Typical applications include the delivery of process air for composting plants and similar demanding installations.
Product highlights
Above ErP compliance
NOVENCO fans surpass the EU Ecodesign (ErP) requirements and deliver higher efficiency with consistent performance. This results in lower power use, reduced operating costs, and a more sustainable choice for modern ventilation systems.
ATEX category 2G/D
NOVENCO fans intended for use in potentially explosive atmospheres are constructed and marked for ATEX Category 2G/D according to the EU directive ATEX 2014/34/EU.
Durable construction
Hot-dip galvanised steel casing, impeller and brackets with hot-dip galvanised surfaces ensure long service life.
Easy service access
Both motor and impeller are drive-side removable (DSR) for simplified inspection and maintenance.
Product highlights
Above ErP compliance
NOVENCO fans surpass the EU Ecodesign (ErP) requirements and deliver higher efficiency with consistent performance. This results in lower power use, reduced operating costs, and a more sustainable choice for modern ventilation systems.
ATEX category 2G/D
NOVENCO fans intended for use in potentially explosive atmospheres are constructed and marked for ATEX Category 2G/D according to the EU directive ATEX 2014/34/EU.
Navigate to
- For ducted connection.
- Direct-coupled motor with backward-curved blades.
- Housing, impeller, and brackets are made of steel with hot-dip galvanisation.
- Accessories are available for mounting, connection, safety, and regulation.
- Optional execution as ATEX fans. Product configuration available with AirBox™.

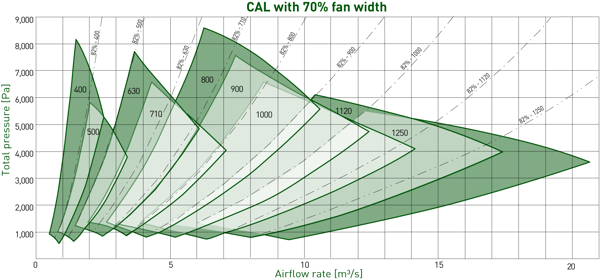

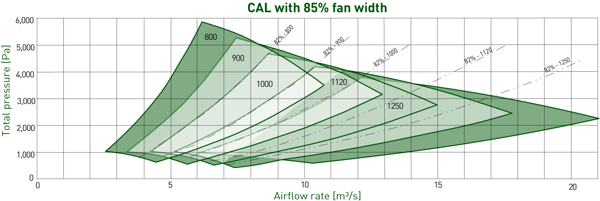

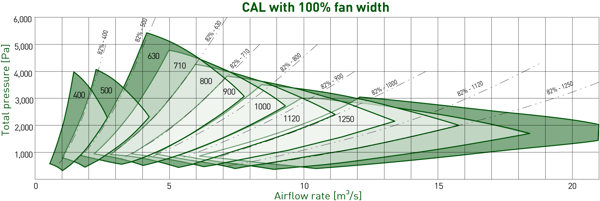

Performance & pressure
- Airflow rates from 0.3 to 21 m³/s (1100 to 75600 m³/h).
- Pressures up to 8500 Pa.
Sizes
9 sizes from 400 to 1250 mm.
Fan casing materials & corrosion categories
- Steel housing and impeller with hot-dip galvanisation.
- Corrosion categories (EN-ISO 12944-2:2017):
- Standard: C3
- Optional: C4 or C5
Accessories & variations
- Accessories for mounting, connection, safety, and regulation.
- Motor and impeller are drive-side removable (DSR).
- Configuration through AirBox™.
- Optional execution as ATEX fans.
Catalogues
Manuals
9 sizes from 400 to 1250 mm.
